How to Measure and Replace Boat Deck Hardware Correctly

Replacing boat deck hardware goes smoothly only when the new fitting matches the old installation closely enough to avoid unnecessary drilling, poor sealing, or hidden deck repairs. A cleat, hinge, grab handle, deck filler, hatch adjuster, or similar fitting may look right in a photo, but a few millimeters of difference in base size, hole spacing, height, or underside clearance can change the whole job.

The safest sequence is simple: measure first, compare carefully, inspect the mounting area, and then decide whether the old holes can be reused. Drilling should come after fitment checks, not before them. Every new hole is another place that must be sealed, and every old unused hole must be handled correctly.

This guide gives boat owners a practical replacement workflow: what to measure before ordering, what to photograph, how to compare hole spacing, when to reuse existing holes, and what to check before fastening the new hardware.

Before You Order, Build a Measurement Record

Do not start by searching for the closest-looking part. Start by recording the old installation. The goal is to create a small measurement record that lets you compare a new product listing against the actual boat, not against memory.

Take measurements with the old hardware still installed if possible, then take additional measurements after safe removal. If the part is loose, leaking, or load-bearing, treat removal as an inspection step, not just a shopping step.

Use the same unit system shown in the product listing. If the listing uses millimeters, measure in millimeters where possible. Conversion errors are a common reason a replacement that looks close on screen does not line up on deck.

Replacement Measurement Record

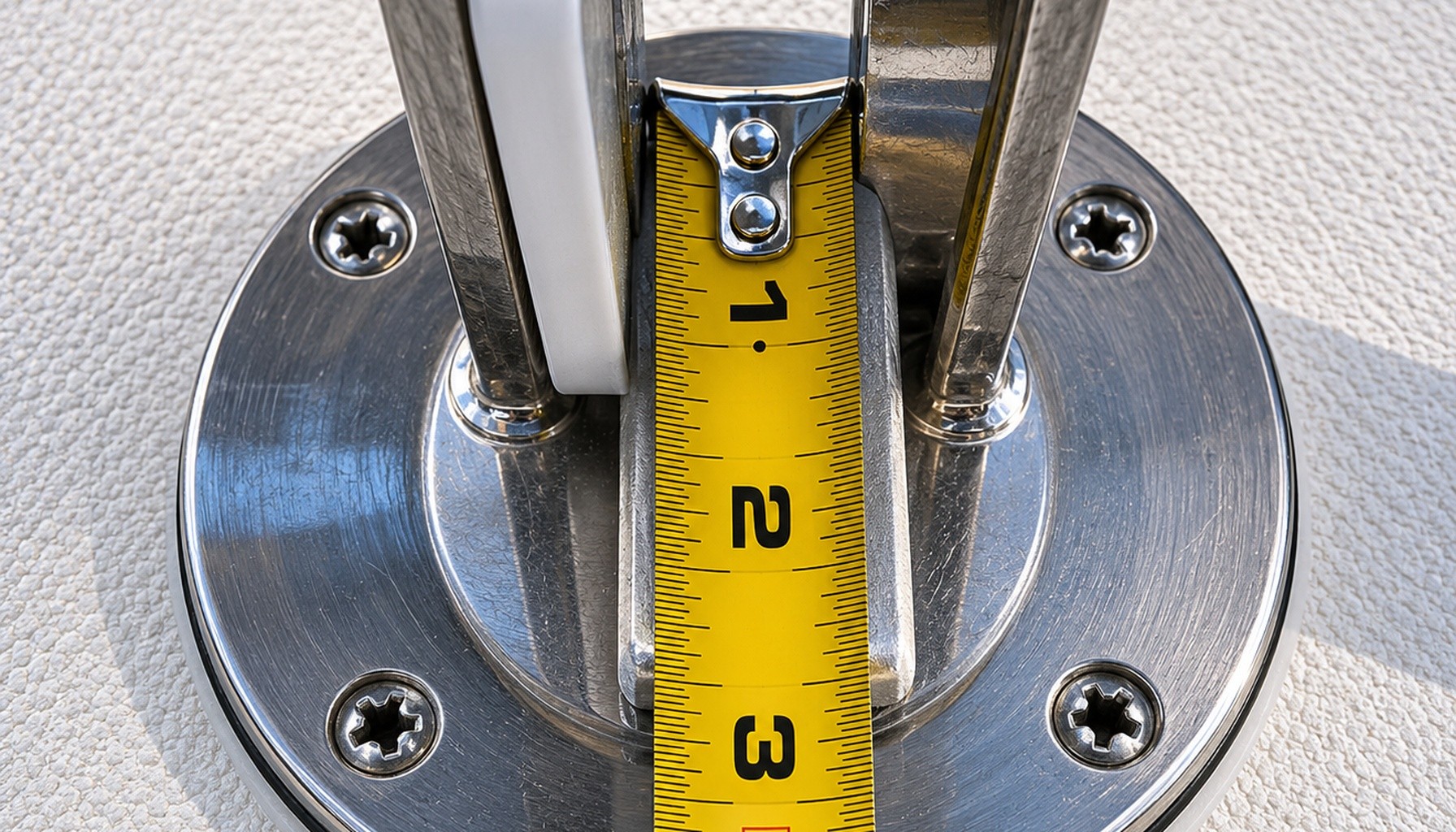

Measure the Visible Footprint

The visible footprint is the area the fitting occupies on the boat. Measure the overall length, width, and shape first. Then measure the mounting base separately. The base footprint is often more important than the overall size because it determines whether the new part covers the old sealant mark, faded gelcoat, chipped paint, or unused holes.

Do not assume similar-looking hardware has the same base. A hinge may have the same length but a wider leaf. A grab handle may have the same grip length but different base spacing. A deck filler may have a similar cap but a different flange diameter. A hatch adjuster may look similar but use a different mounting position or operating range.

For broad comparison, categories such as boat hardware and accessories can help identify common fitting styles. The final choice should still be based on measured dimensions and the condition of the mounting area.

Measure Hole Spacing Correctly

Mounting hole spacing is usually the most important replacement measurement. Measure from the center of one hole to the center of another. This is called center-to-center spacing. Do not rely on edge-to-edge measurements because hole edges may be worn, countersunk, enlarged, chipped, or partly covered with old sealant.

For a two-hole fitting, record the distance between the two hole centers. For a four-hole base, record the lengthwise and widthwise spacing, along with the overall pattern shape. If the holes are not arranged in a simple rectangle, make a paper template and mark the center of every hole.

Replacement boat cleats deserve special care because cleats may carry mooring loads. A cleat that looks close is not enough. The base must sit flat, the holes must align or be repaired properly, and the underside should have suitable support for the expected load.

Make a Paper Template Before Drilling

A paper template is one of the simplest ways to prevent a poor replacement. Place paper or light card over the old fitting or hole pattern, mark the base outline, mark each hole center, and note the part’s forward direction. Then compare the template with the new hardware or product drawing.

The template helps reveal problems that measurements alone may hide. A new hole may fall too close to an old hole. A base may cover the old footprint on one side but expose a sealant mark on the other. A hinge leaf may line up with the screw holes but shift the hatch alignment. A deck filler flange may fit the top surface while the hose direction below the deck does not work.

If the replacement is close but not exact, use the template before deciding to drill. A few minutes with a template can prevent an avoidable deck repair.

Check Fasteners Before Reusing Them

Remove one fastener and record its diameter, length, thread type, if identifiable, head style, and how it was secured below the deck. Note whether the original installation used screws only, through-bolts, washers, lock nuts, backing plates, threaded inserts, or tapped metal.

Fastener head style matters. A countersunk screw is meant to sit in a matching countersunk recess. A pan head or socket head needs a flat bearing area. If the head does not match the replacement fitting, the hardware may not sit correctly and the load may be concentrated in the wrong place.

Do not reuse fasteners automatically. Replace them if they are bent, stripped, heavily stained, pitted, too short, mismatched, or incompatible with the new fitting. Stainless steel fasteners are corrosion-resistant, not corrosion-proof, especially where salt, trapped moisture, poor drainage, or mixed-metal contact is present.

Inspect the Mounting Surface After Removal

Once the old hardware is removed, the deck or panel tells you whether the replacement can be straightforward. Look for soft spots, spider cracks, crushed laminate, dark staining around holes, lifted gelcoat, enlarged holes, old sealant that has lost adhesion, and any sign that the fitting has been moving.

Cored decks need particular care. If water has entered through old fastener holes, the core may be wet or weakened even if the top surface still looks usable. Covering a damaged area with a larger fitting can hide the problem without restoring strength or sealing the core.

Before drilling, enlarging holes, or probing deeper, check behind the mounting area where access allows. Hidden wiring, fuel lines, tanks, water hoses, plumbing, steering cables, drain lines, core material, flotation, and structural members may be close to the work area. This is especially important around consoles, cockpit lockers, gunwales, deck fillers, and areas with limited underside visibility.

Decide Whether Old Holes Can Be Reused

Existing holes are useful only when they are dry, undamaged, aligned with the replacement hardware, suitable for the fastener size, and can be sealed properly. Reusing good holes can avoid extra deck penetrations and preserve the original layout.

Old holes should be filled and sealed rather than reused when they are oversized, cracked, wet, misaligned, too close to a new hole, or surrounded by weak material. Unused holes should not simply be hidden under a new base without proper sealing because water can still migrate under the fitting.

If the new part does not match the old holes, first look for a closer replacement. Drilling new holes should come after measurement, template comparison, and underside inspection. Do not use fastener pressure to force a poor fit.

Compare by Hardware Type

Different deck hardware has different fitment traps. A replacement that appears to work by overall size may still fail because of geometry, clearance, hose direction, or load path.

For hinges, compare leaf length, leaf width, thickness, screw pattern, pin position, swing direction, and hatch alignment. A hinge with matching length but different pin offset can change how the hatch closes.

For handrails and grab handles, compare base spacing, grip clearance, mounting foot shape, and whether each base will sit flat. These fittings may support a person moving on a wet deck, so fastener access and backing support matter.

For boat deck fillers, compare flange diameter, cap type, labeling, screw pattern, hose connection, hose direction, and space below the deck. A filler that fits the top opening may still conflict with a hose, tank line, or structure underneath.

For hatch adjusters, compare mounting position, extended length, closed length, pivot direction, and operating range. The part should be checked for movement through its full travel, not only screw spacing.

Dry-Fit Before Sealant

Before applying sealant, place the replacement hardware in position and confirm the full installation. Check that the base sits flat, holes align, fasteners pass through cleanly, washers and nuts fit below, backing plates sit against sound material, and nearby hatches, lockers, rails, covers, or moving parts still clear the fitting.

Dry-fitting also helps confirm whether the installation can be serviced later. If a nut cannot be reached, a backing plate cannot sit flat, or a hose cannot bend safely, solve that problem before sealant is applied.

For load-bearing hardware, confirm that the deck surface and underside support are suitable. Large washers may be enough for some light-duty applications, but cleats, handrails, grab handles, ladders, and loaded rod holders often need stronger backing or reinforcement.

Bed and Tighten the Replacement Carefully

Old sealant should be removed from the deck and any reused hardware surfaces before the new fitting is installed. New bedding applied over loose, dirty, cracked, or oily residue may not bond reliably.

Use a marine sealant or bedding compound suitable for the materials and the service environment. The goal is to reduce water intrusion around fasteners and under the fitting, not to compensate for poor fit or weak structure. Sealant does not replace correct fasteners, backing, or a sound mounting surface.

Tighten fasteners evenly and avoid crushing the deck surface. Overtightening can squeeze out too much bedding, crack gelcoat, distort the fitting, strip threads, or compress cored material. If the fitting rocks, one side pulls down unevenly, or fasteners do not tighten cleanly, stop and inspect the cause.

FAQ

What measurements do I need before replacing boat deck hardware?

Measure overall length, width, height, base footprint, center-to-center hole spacing, fastener diameter, fastener length, fastener head style, cutout size, if any, and underside clearance. Also check nearby hatches, lockers, rails, covers, and moving parts.

What does center-to-center hole spacing mean?

Center-to-center hole spacing is the distance from the middle of one mounting hole to the middle of another. It is more reliable than edge-to-edge measurement because old holes may be worn, enlarged, countersunk, or covered with sealant.

Can I reuse old mounting holes?

Old holes can be reused if they align correctly, are dry and undamaged, match the fastener size, and can be sealed properly. Do not reuse holes that are cracked, wet, enlarged, misaligned, or surrounded by weak deck material.

What if new boat hardware does not match the old holes?

Look for a closer replacement before drilling. If new holes are necessary, check below the deck first, keep new holes away from damaged areas, and properly fill and seal any old holes that will not be reused.

Should I replace the fasteners when installing new hardware?

Replace fasteners if they are corroded, bent, stripped, mismatched, too short, or incompatible with the new fitting. Fasteners, washers, nuts, backing, and sealant all affect the reliability of the replacement.

When should a hardware replacement be inspected professionally?

Professional inspection is sensible when the hardware carries loads, supports people, seals a fuel or water system, mounts through a cored deck, or shows soft core, cracking, water intrusion, inaccessible backing, or structural uncertainty.
